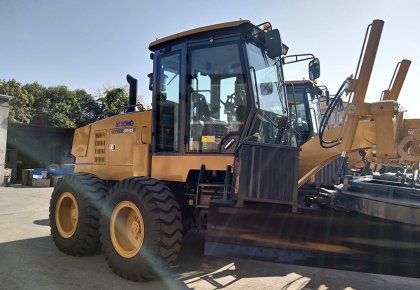

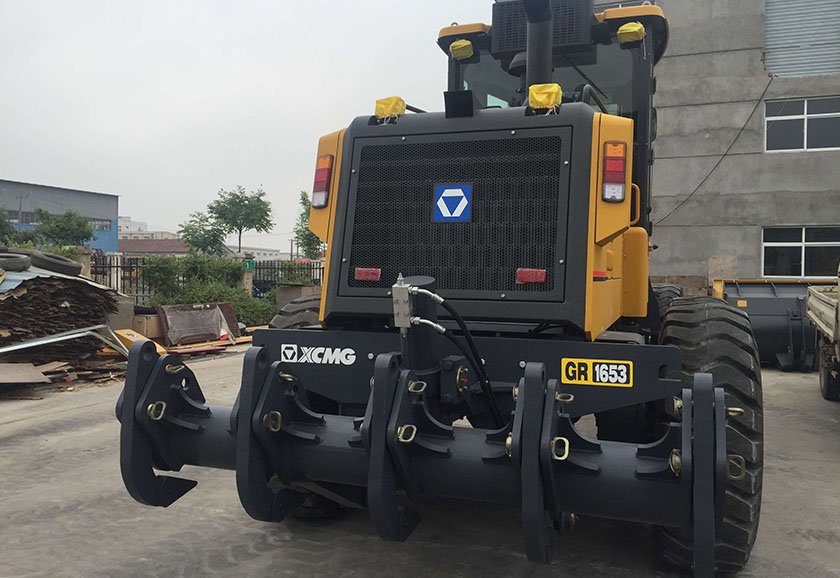

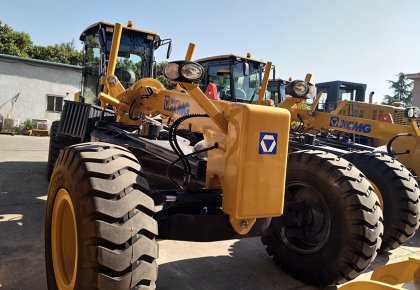

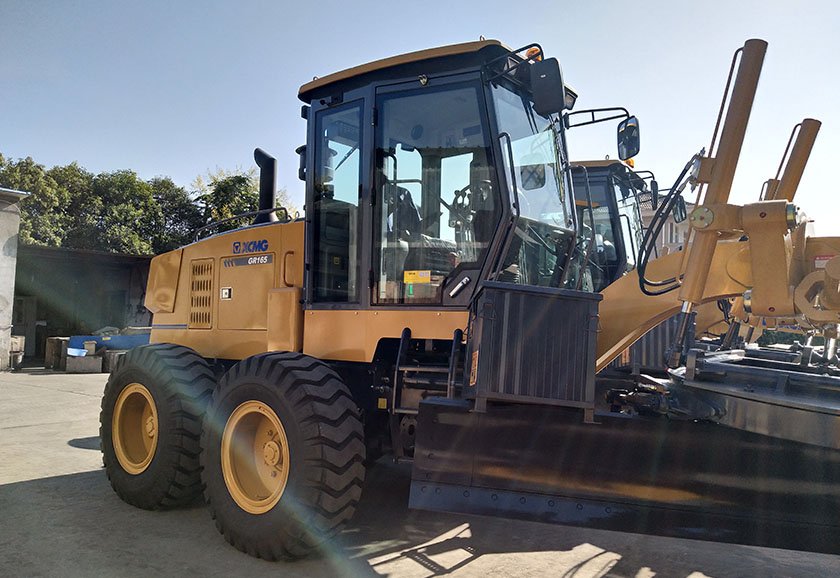

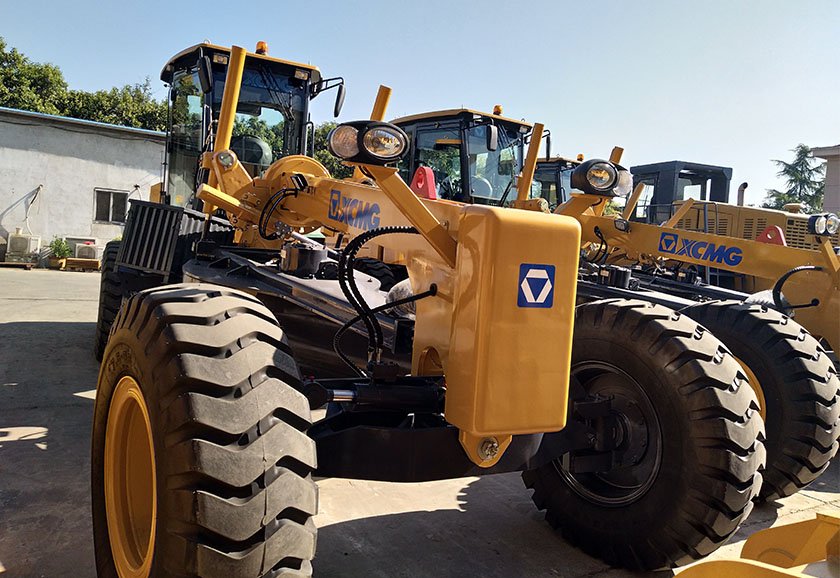

GR165 China graders 165hp XCMG motor grader For sale
Performance specification | GR165 |
Travelling speed ,forward | 5、8、11、19、23、38 km/h |
Travelling speed ,reverse | 5、11、23 km/h |
Tractive force(f=0.75) | 77KN |
Max. gradeability | 0.2 |
Tire inflation pressure | 260 kPa |
Working hydraulic pressure | 16 MPa |
Transmission pressure | 1.3～1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 15 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 7.3m |
Biade | |
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 3965×610mm |
