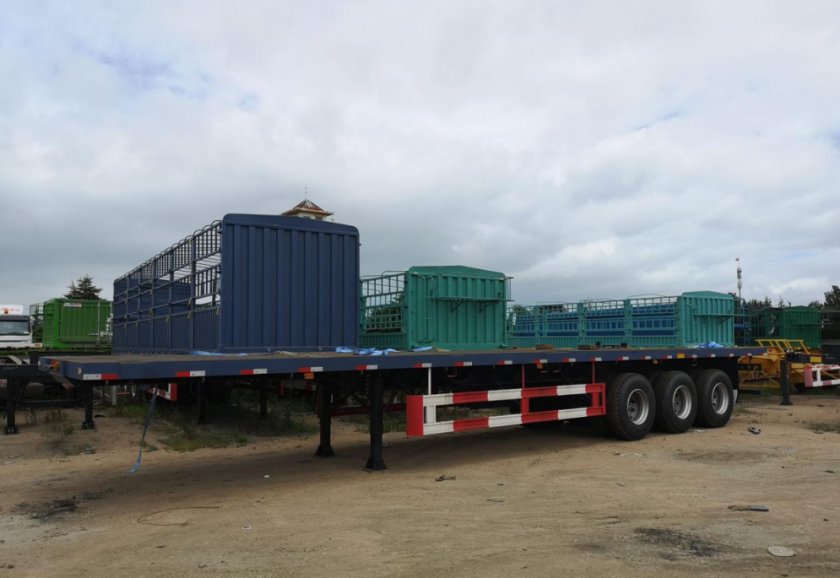

Specifications of sinotruk 20ft container flatbed trailer

Overall size7500x2500x1550 mm
Tare weight4800-5800 kg
Payload30000-40000 kg

I Beam & Chassis

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 16 mm,width 140mm; Middle Flange 8 mm,Height 500mm, Bottom Flange 16mm,width 140mm.

Axle

BPW/FUWA/HJ 12/13/14/15/16 ton axles
Number of axles2/3
Suspension

Heavy duty air/mechanical suspension

Floor

3mm checker plate

King Pin

JOST brand 2” Bolt-in King Pin

Landing Gear

JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim

8.25-22.5, 9.0-22.5, 8.0-20, 8.5-20, 11.75-22.5, 13-22.5 steel/aluminium rim

Tire

11R22.5, 12R22.5, 315/80R22.5, 12.00R20, 385/65R22.5, 425/65R22.5

Twist Lock

4 nos. of ISO twist lock for 1x20ft container, the retractable central locks can be laid down.

Spare Tire

One set of spare tire including a carrier

Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box, fuel tank, water tank, ABS etc
