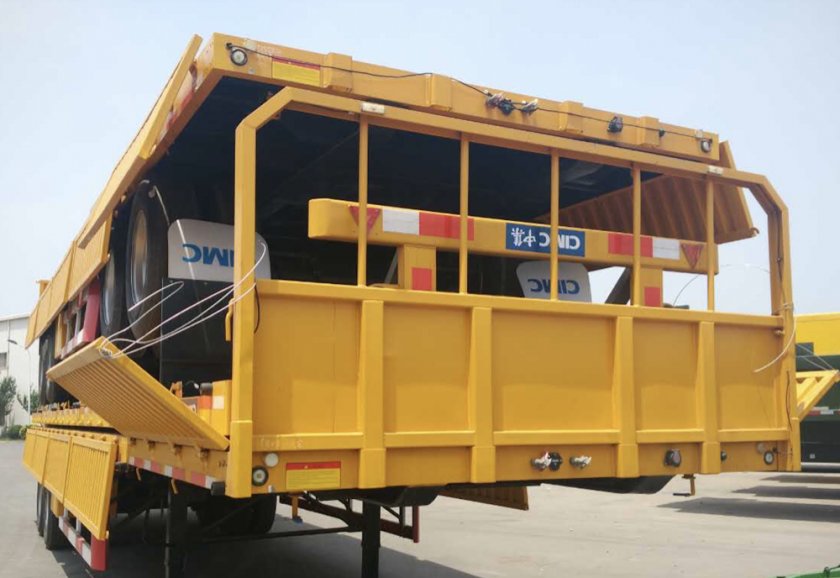

Flat bed semi trailer technical details | |
Over all dimension (mm) | 12500*25000*1600 |
Axle No. | 3 |
Kerb weight(kg) | 7000 |
Loading capacity (kg) | 50000 |
Main frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm , Upper Flange thickness: 16mm; Under Flange thickness: 16mm;Ventral Flange thickness: 8mm Floor thickness 3mm |
Qty of axle | 3 units |
Landing gear/Outrigger | 28T capacity, gear outside. |
Braking system | Pneumatic |
Air chamber | 4 pcs double type ,2 pcs single type |
Leaf spring | 10 leaves 90mm*13mm |
Kingpin | 3.5’’ welding type |
Electrical system | 24V |
Tyre model | |
Tool box | 1 unit |
Number of Container locks | 12 pcs (suitable for 40ft or 2 units 20ft) |
Fence height (mm) | 600mm |
