Specification For Flatbed Semi Trailer | |
brand new | |

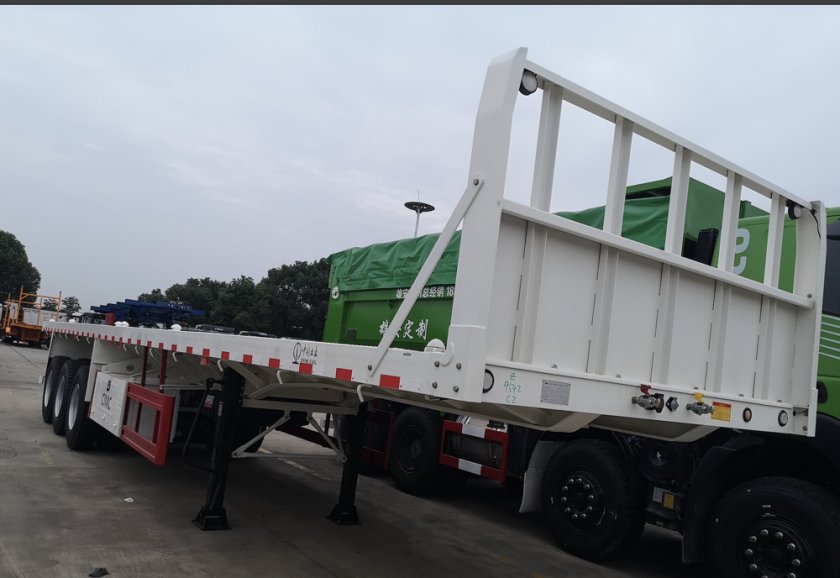

Type | Flatbed semi trailer |
Tare Weight | Approx. 6.2 T |
Dimension | 12400*2500*1550mm |
Loading Capacity | 30-100T |
Axle | 13T/16T, FUWA/BPW/SHENGRUN, etc |
Rim | 9.00*22.5/8.00-20/8.5-20 |
Tire | 12.00R22.5 ; 315/80R22.5; 11.00R20; 12.00R20 brand can be optional |
Suspension | Mechanical suspension(Germany type or America type) or Air suspension |
Leaf Spring | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
King pin | Jost brand 2.0 or 3.5 inch |
Spport leg | Jost brand two speed |
Main beam | Q345B steel |
Side beam | 16mm channel steel (Material is Q235B steel) |
Bottom Platform | 3mm checquered steel plate |
Side wall | Optional |
Brake chamber | Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks |
ABS | Optional |
Valve | Wabco valve (especial for exporting market) |
Light | LED Light (especial for exporting market) |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Tool box | One piece 1m *0.5m*0.5m ( size can be customized) |
Painting | 1 cost of anticorrosive primer, 2 coats of final paint, color advised by customer |
Shipping terms | By bulk vessel, RORO, or 40HQ container |
