Detail specification | ||

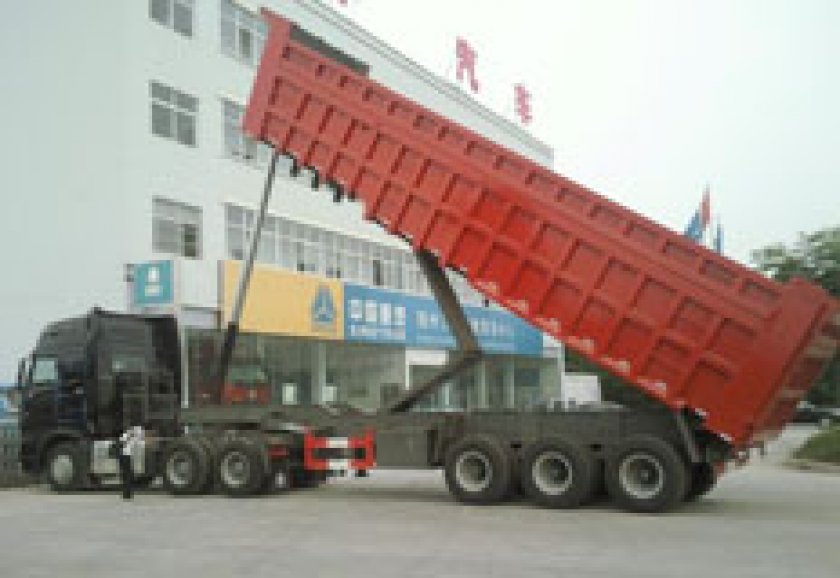

Model | 3 axle 40m3 dump trailer | |
Function | Transport sand, stone, gravel | |
Dimension | ||
Overall Size (L×W×H)mm | 9800×2550×3860mm | |
Inner Size (L×W×H)mm | 8500×2330×2000mm | |
Wheel base | 6870+1310+1310mm | |
weight | ||
Payload | 68,000kg | |
Tare weight | Approx12,000kg | |
G.V.W.R. | Approx 80,000kg | |
Body details | ||
Main beam | Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm. | |
Body thickness | 6mm | |
Bottom thickness | 8mm | |
Hydraulic System | Full set of HYVA Hydraulic System 202 | |
Frame | ||
Axle | heavy duty, 3×13Ton capacity, FUWA brand | |
Suspension | Leaf spring suspension, 90mm×16mm×10pcs | |
Tire | 12R22.5 12units Chengda Brand | |
Kingpin | 50mm/90mm removable | |
Landing gear | Yahua brand, 28ton, double speed, heavy duty | |
Tool box | 1pcs | |
Spare wheel carrier | 2pcs | |
Electrical system | ||
Voltage | 24Volt | |
Receptacle | 7 way socket SAE standard,China | |
Front marker lamp | white | |
Side marker lamp | white&red | |
Rear lamp | red | |
Turn signal lamp | Amber | |
Wiring | Electric cable protected by PVC conduit on main frame | |
Brake system | ||
Brake | Dual line pneumatic brake,SAE hose and connector,no ABS | |
Brake air chamber | Six big chamber | |
Painting | Shot blast at Standard SA 2.5 prior to application of primer,polyurethane top coat.Total DFT not less than 100um | |
Color | As customer requirement | |
